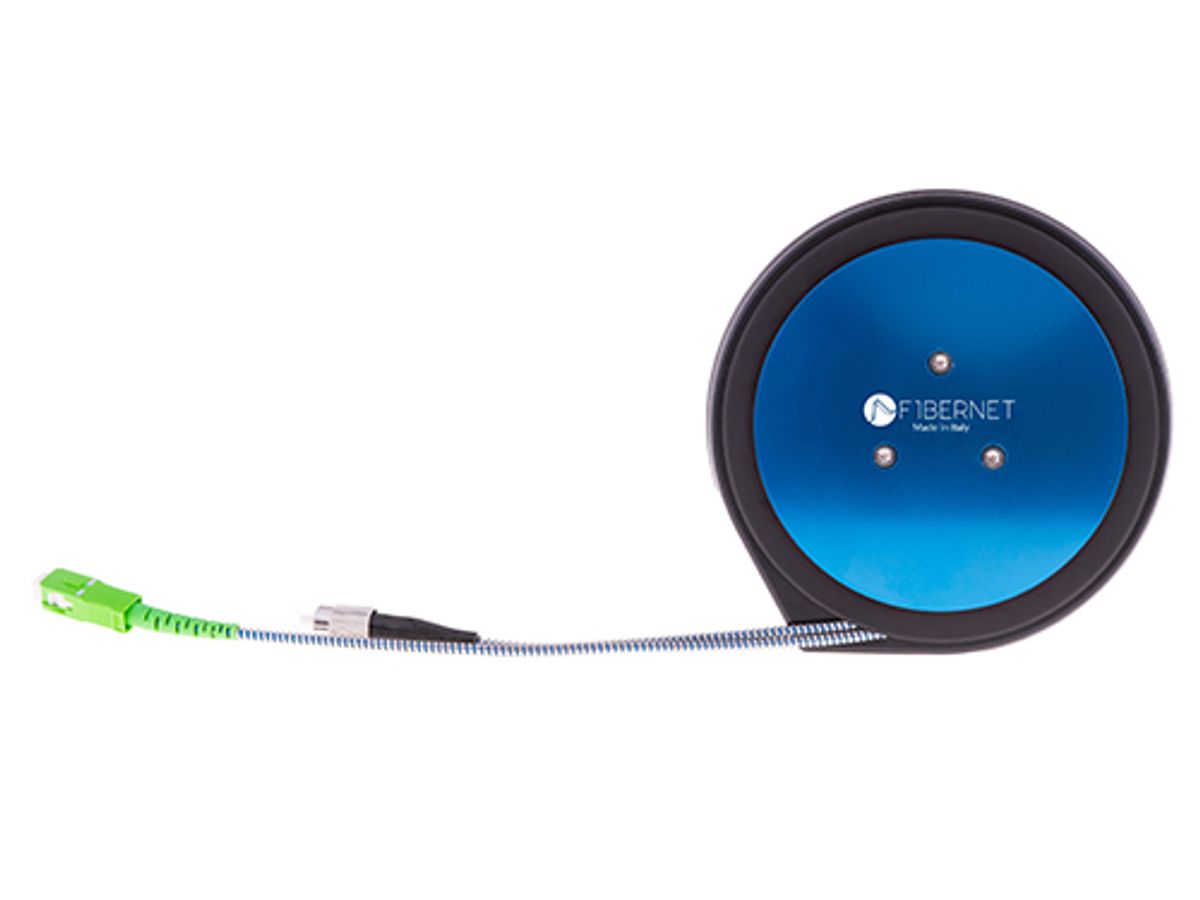

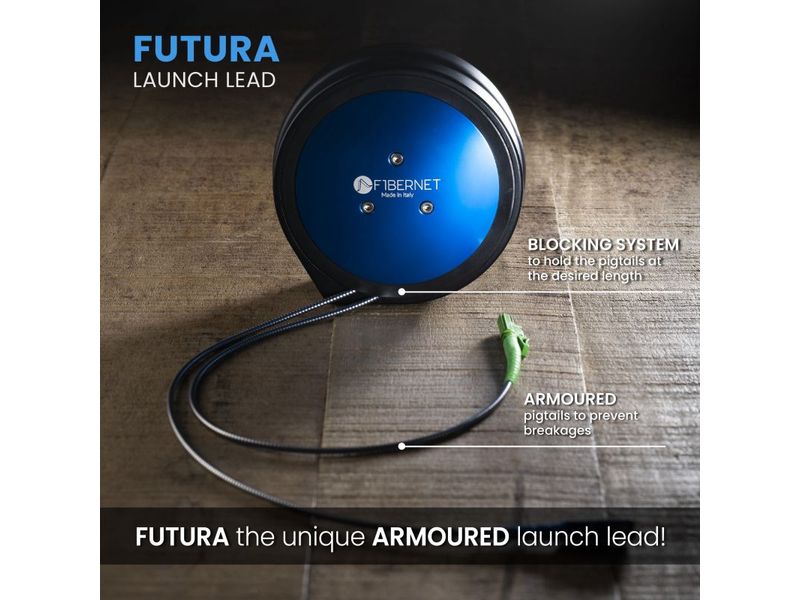

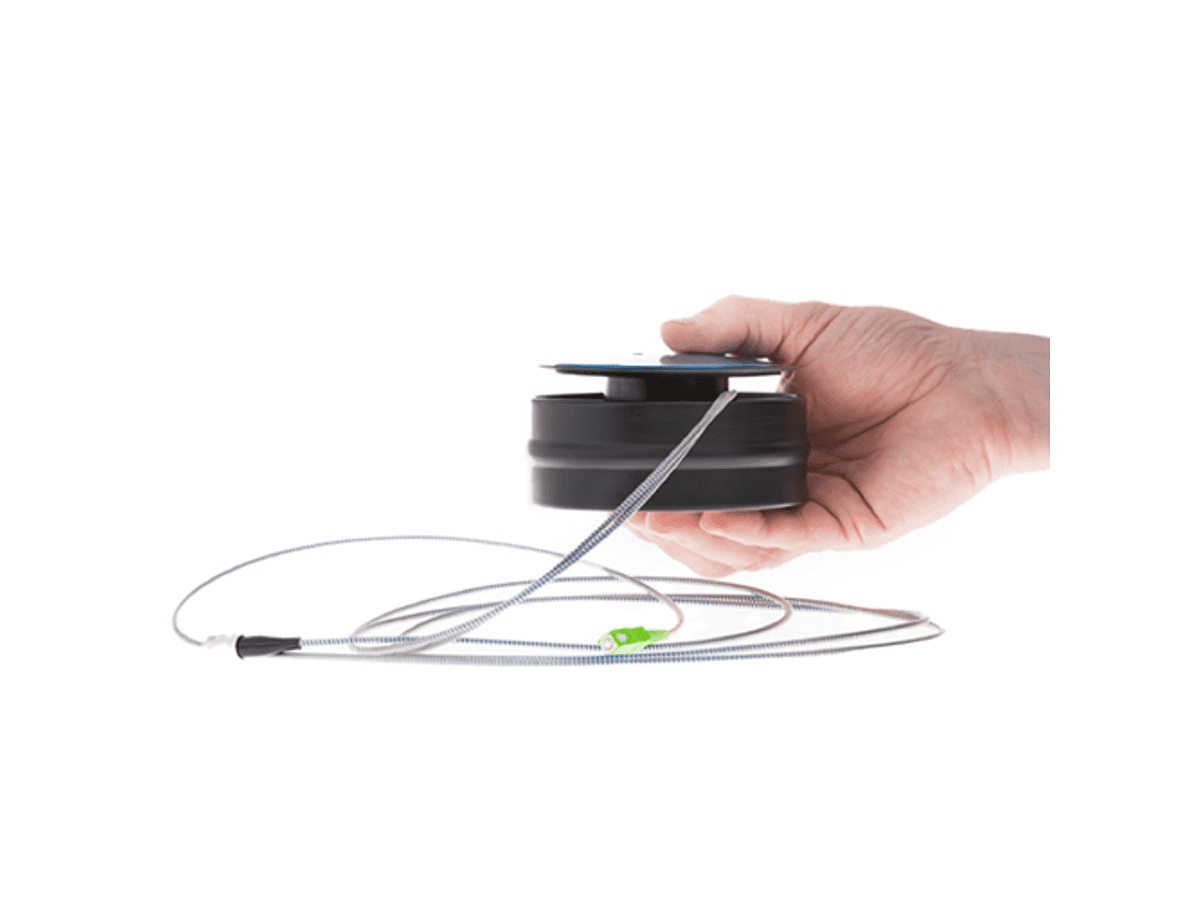

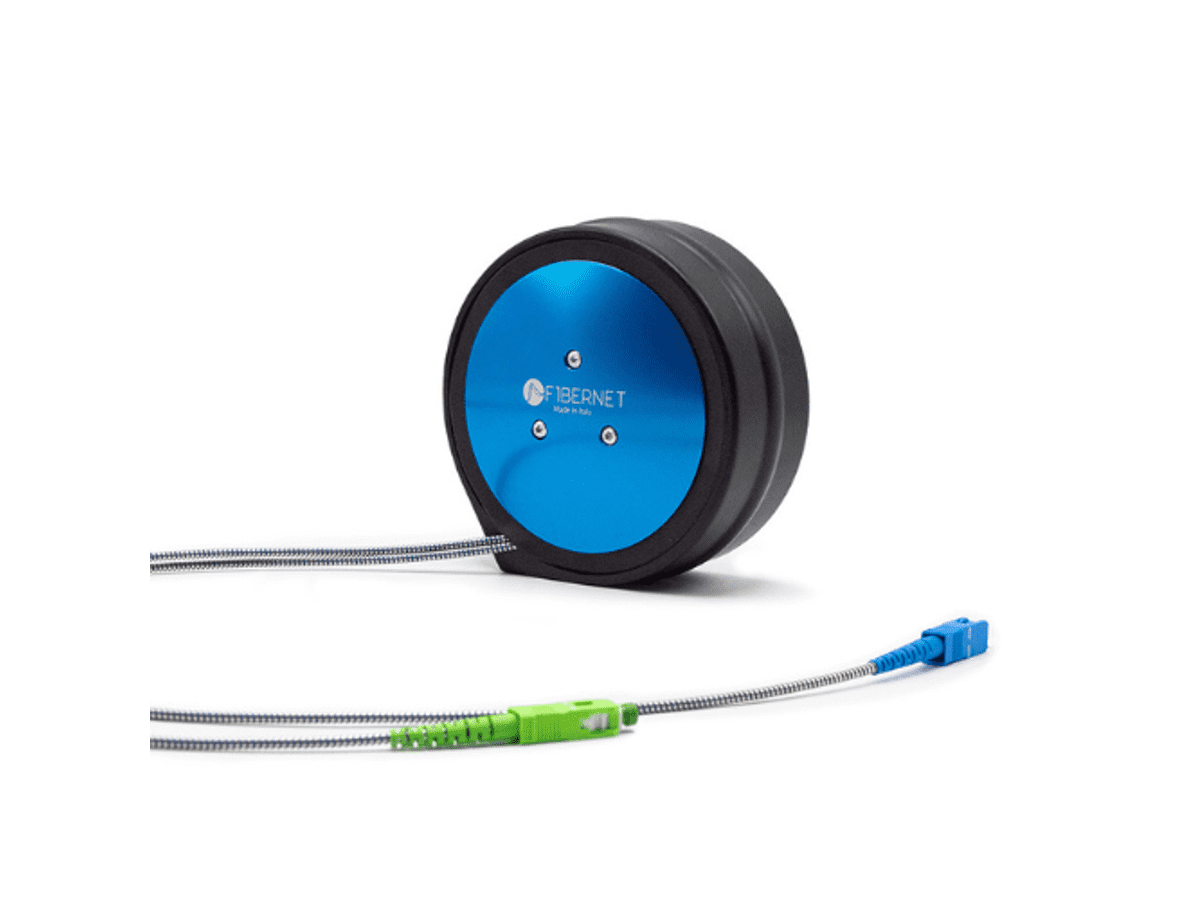

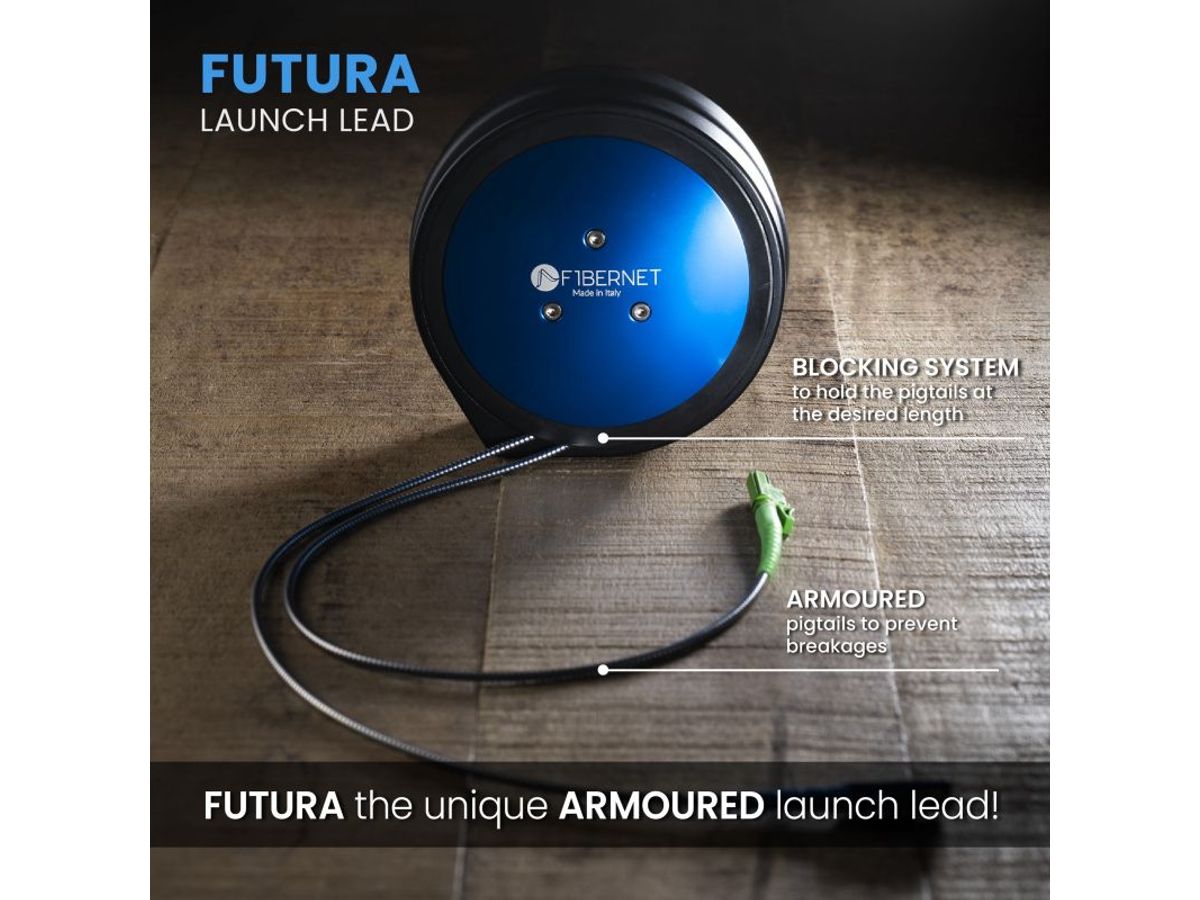

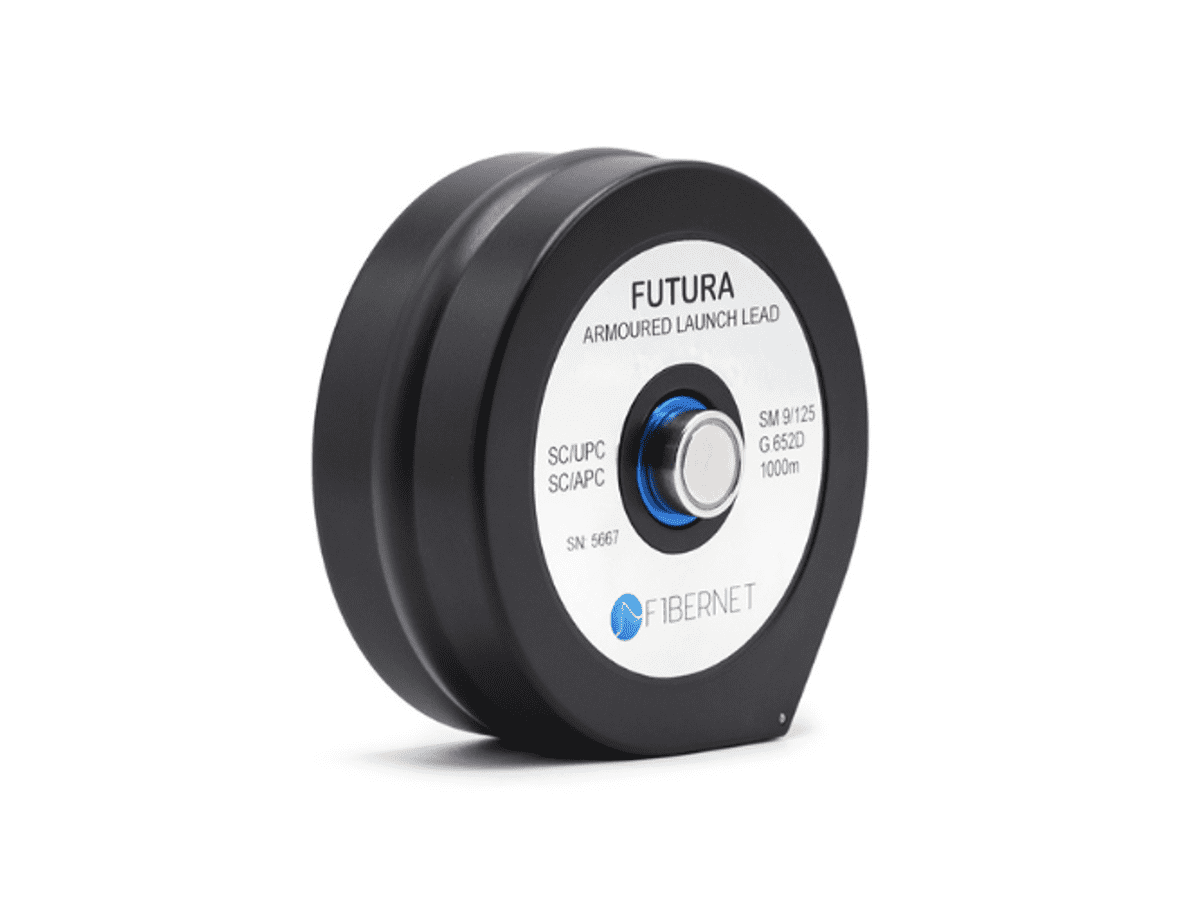

Futura Launch Lead

FUTURA is the launch lead entirely designed, produced and patented by Fibernet. An innovative solution, designed to make the installer’s activity in the field more comfortable and functional. With reduced dimensions – four times compared to the standard models – Futura guarantees the maximum resistance, thanks to the metal reinforced exit straps, and ease of use.

DIMENSIONS (Ø) 110 X (H) 50
WEIGHT 0,4 kg
OPERATING TEMPERATURE -33 ÷ +90 °C
INSERTION LOSS < 0,25 dB
RETURN LOSS UPC <-50 dB / APC <-60 dB
FIBER LENGTH Up to 1.000 m
MATERIAL ABS e Aluminum
TYPE OF FIBER SM: G.657A1
MM: OM1 - OM2 - OM3 - OM4
TYPES OF CONNECTORS SC / LC / MU / FC / ST
FERULE FINISHING UPC / APC
